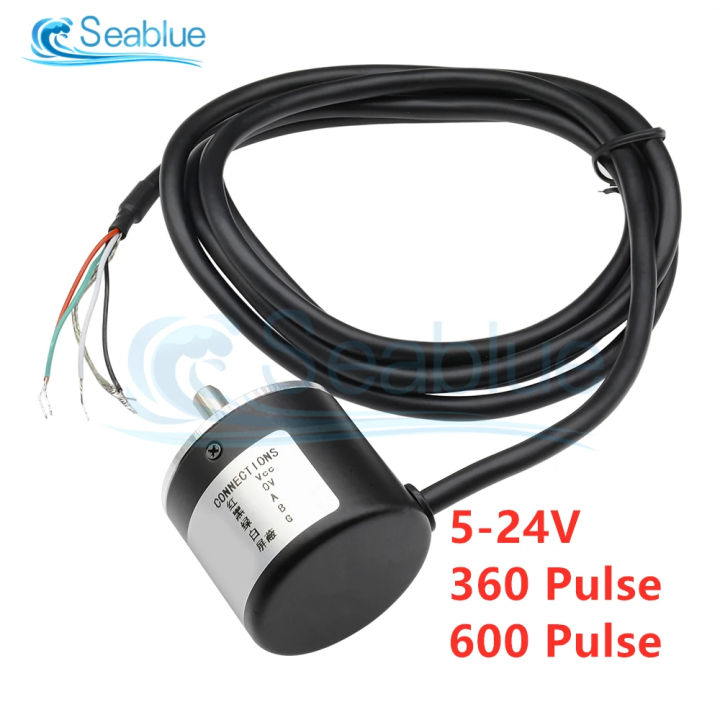

DC 5-24v 360/600 P/r Fotoelétrico Incremental Codificador Rotativo Ab

In questa guida spieghiamo quali sono le caratteristiche dell’encoder e vediamo quali risultano essere i prezzi dei vari prodotti Operating voltage: DC5-24V Encoder Rotativo, Incrementale Rotary Encoder, Encoder rotativo incrementale fotoelettrico 600P/R 5V-24V AB 2 fasi albero 6mm per il Controllo Intelligente di... Output: AB rectangular two-phase quadrature pulse output circuit output NPN open collector output type, this output type can and with internal pull-up resistor connected directly to the microcontroller or PLC, such as 51 single or PLC (PLC's input to switch connected to 0V should work), Note: If the encoder is not connected to the device can not be directly oscilloscope oscilloscope (open collector output when there is no pull-up resistor, there is no voltage output) to oscilloscope please plus two pull-up resistor AB two-phase output; Uses: for measuring the rotational speed of the object, angle, acceleration, and length measurements. Wiring: Green = A phase, white = B phase, red = Vcc positive supply, black = V0, please wiring as described above. Encoder 5VDC Per Elettronica Encoder Rotativo Incrementale - ARS T 20 - ATEK SENSOR TECHNOLOGIE Encoder Incrementale THT Feature: AB two-phase incremental optical rotary encoder 360 pulses,including NPN open collector output and voltage output two kinds of output., Standard with 1., 5 m cable Performance: 360 pulses/rev. AB two-phase incremental optical rotary encoder 360 pulses,including NPN open collector output and voltage output two kinds of output. Sensore Rotazione Velocità Angolo DC 5-24v 360/600 P/r Fotoelétrico Incremental Codificador Rotativo Ab Encoder Per PLC Microcontroller Package included: 1 x 360 Pulses AB Two-phase 5-24V Incremental Optical Rotary Encoder small size, light weight, easy installation, high cost significant advantage., Standard with 1., 5 m cable , Performance: 360 pulses / rev.
